FA37DRS80S4詳細信息
FA37DRS80S4
關鍵詞：0.18KW電機加齒輪箱一體機_FA37DRS80S4_FA37DR80S4
FA37DRS80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA37DRS80S4 | 58.32 | 0.55KW | 24.0rpm | 220N.m | 28Kg | 3950N | 0.90 |
| FA37DRS80S4 | 54.54 | 0.55KW | 25.0rpm | 205N.m | 28Kg | 4180N | 0.95 |
| FA37DRS80S4 | 51.70 | 0.55KW | 27.0rpm | 197N.m | 28Kg | 4340N | 1.00 |
| FA37DRS80S4 | 47.02 | 0.55KW | 29.0rpm | 179N.m | 28Kg | 4570N | 1.10 |
| FA37DRS80S4 | 43.83 | 0.55KW | 31.0rpm | 167N.m | 28Kg | 4710N | 1.20 |
| FA37DRS80S4 | 38.31 | 0.55KW | 36.0rpm | 146N.m | 28Kg | 4920N | 1.35 |
| FA37DRS80S4 | 35.91 | 0.55KW | 38.0rpm | 137N.m | 28Kg | 5000N | 1.45 |
| FA37DRS80S4 | 31.69 | 0.55KW | 44.0rpm | 121N.m | 28Kg | 4980N | 1.65 |
| FA37DRS80S4 | 28.09 | 0.55KW | 49.0rpm | 107N.m | 28Kg | 4860N | 1.85 |
| FA37DRS80S4 | 23.88 | 0.55KW | 58.0rpm | 91N.m | 28Kg | 4680N | 2.20 |
| FA37DRS80S4 | 23.63 | 0.55KW | 58.0rpm | 90N.m | 28Kg | 4670N | 2.20 |
| FA37DRS80S4 | 20.57 | 0.55KW | 67.0rpm | 78N.m | 28Kg | 4520N | 2.60 |
| FA37DRS80S4 | 19.27 | 0.55KW | 72.0rpm | 73N.m | 28Kg | 4450N | 2.70 |
| FA37DRS80S4 | 17.03 | 0.55KW | 81.0rpm | 65N.m | 28Kg | 4320N | 3.10 |
| FA37DRS80S4 | 14.33 | 0.55KW | 96.0rpm | 54N.m | 28Kg | 4130N | 3.70 |
FA37DR80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA37DR80S4 | 58.32 | 0.55KW | 24.0rpm | 220N.m | 28Kg | 3950N | 0.90 |
| FA37DR80S4 | 54.54 | 0.55KW | 25.0rpm | 205N.m | 28Kg | 4180N | 0.95 |
| FA37DR80S4 | 51.70 | 0.55KW | 27.0rpm | 197N.m | 28Kg | 4340N | 1.00 |
| FA37DR80S4 | 47.02 | 0.55KW | 29.0rpm | 179N.m | 28Kg | 4570N | 1.10 |
| FA37DR80S4 | 43.83 | 0.55KW | 31.0rpm | 167N.m | 28Kg | 4710N | 1.20 |
| FA37DR80S4 | 38.31 | 0.55KW | 36.0rpm | 146N.m | 28Kg | 4920N | 1.35 |
| FA37DR80S4 | 35.91 | 0.55KW | 38.0rpm | 137N.m | 28Kg | 5000N | 1.45 |
| FA37DR80S4 | 31.69 | 0.55KW | 44.0rpm | 121N.m | 28Kg | 4980N | 1.65 |
| FA37DR80S4 | 28.09 | 0.55KW | 49.0rpm | 107N.m | 28Kg | 4860N | 1.85 |
| FA37DR80S4 | 23.88 | 0.55KW | 58.0rpm | 91N.m | 28Kg | 4680N | 2.20 |
| FA37DR80S4 | 23.63 | 0.55KW | 58.0rpm | 90N.m | 28Kg | 4670N | 2.20 |
| FA37DR80S4 | 20.57 | 0.55KW | 67.0rpm | 78N.m | 28Kg | 4520N | 2.60 |
| FA37DR80S4 | 19.27 | 0.55KW | 72.0rpm | 73N.m | 28Kg | 4450N | 2.70 |
| FA37DR80S4 | 17.03 | 0.55KW | 81.0rpm | 65N.m | 28Kg | 4320N | 3.10 |
| FA37DR80S4 | 14.33 | 0.55KW | 96.0rpm | 54N.m | 28Kg | 4130N | 3.70 |

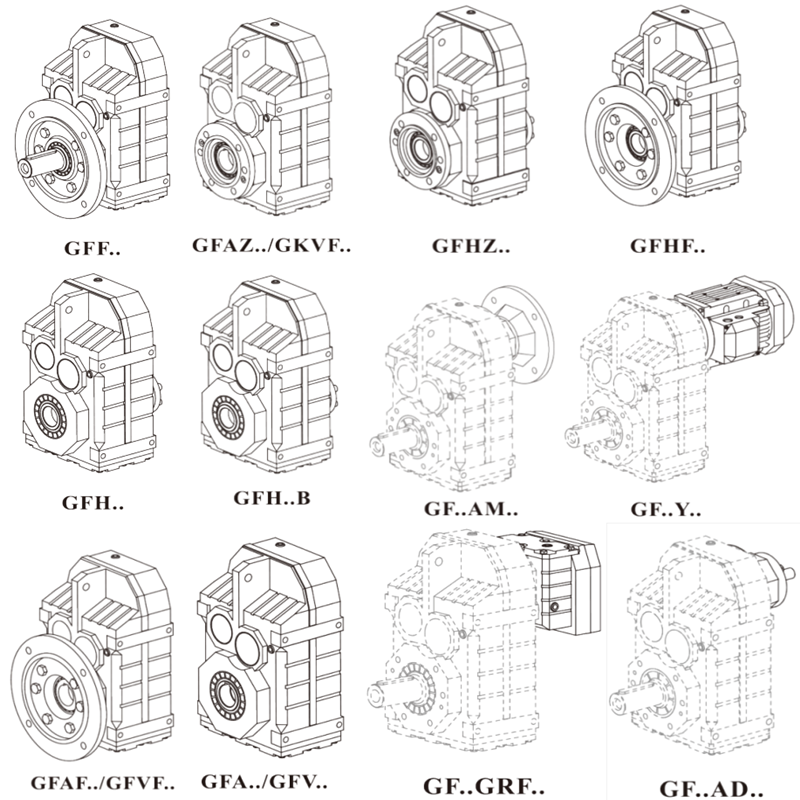

FA37DRS80S4電機減速機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

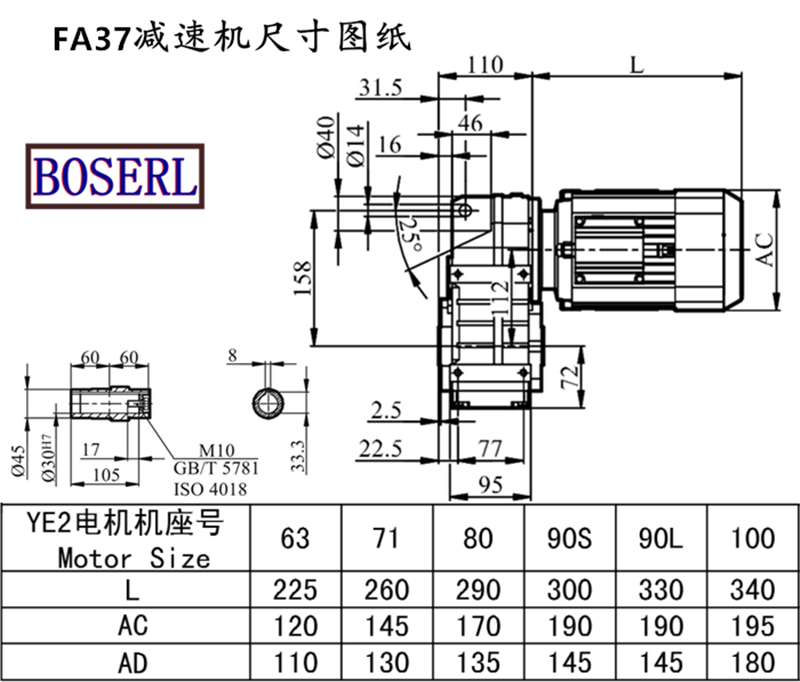

FA37DRS80S4電機減速機安裝尺寸圖紙
FA37DRS80S4電機減速機生產廠家，看廠請?zhí)崆叭祛A約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.18KW電機加齒輪箱一體機 FA37DRS80S4 FA37DR80S4
