FAF87DRN132L4詳細信息
FAF87DRN132L4
關鍵詞：化工減速機電機_FAF87DRN132L4_FAF87DRN132MC4
FAF87DRN132L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF87DRN132L4 | 56.75 | 7.5KW | 26.0rpm | 2760N.m | 223kg | 18100N | 1.10 |
| FAF87DRN132L4 | 50.36 | 7.5KW | 29.0rpm | 2450N.m | 223kg | 18200N | 1.20 |
| FAF87DRN132L4 | 45.28 | 7.5KW | 32.0rpm | 2200N.m | 223kg | 18200N | 1.30 |
| FAF87DRN132L4 | 39.30 | 7.5KW | 37.0rpm | 1910N.m | 223kg | 18100N | 1.40 |
| FAF87DRN132L4 | 35.19 | 7.5KW | 42.0rpm | 1710N.m | 223kg | 17900N | 1.50 |
| FAF87DRN132L4 | 29.20 | 7.5KW | 50.0rpm | 1420N.m | 223kg | 17600N | 1.75 |
| FAF87DRN132L4 | 28.78 | 7.5KW | 51.0rpm | 1400N.m | 223kg | 17500N | 1.75 |
| FAF87DRN132L4 | 26.50 | 7.5KW | 55.0rpm | 1290N.m | 223kg | 17300N | 2.30 |
| FAF87DRN132L4 | 23.68 | 7.5KW | 62.0rpm | 1150N.m | 223kg | 17100N | 2.60 |
| FAF87DRN132L4 | 21.32 | 7.5KW | 69.0rpm | 1030N.m | 223kg | 16800N | 2.90 |
| FAF87DRN132L4 | 19.31 | 7.5KW | 76.0rpm | 940N.m | 223kg | 16500N | 3.20 |
| FAF87DRN132L4 | 17.12 | 7.5KW | 86.0rpm | 830N.m | 223kg | 16100N | 3.60 |
| FAF87DRN132L4 | 15.48 | 7.5KW | 95.0rpm | 750N.m | 223kg | 15800N | 4.00 |
FAF87DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF87DRN132MC4 | 56.75 | 7.5KW | 26.0rpm | 2760N.m | 223kg | 18100N | 1.10 |
| FAF87DRN132MC4 | 50.36 | 7.5KW | 29.0rpm | 2450N.m | 223kg | 18200N | 1.20 |
| FAF87DRN132MC4 | 45.28 | 7.5KW | 32.0rpm | 2200N.m | 223kg | 18200N | 1.30 |
| FAF87DRN132MC4 | 39.30 | 7.5KW | 37.0rpm | 1910N.m | 223kg | 18100N | 1.40 |
| FAF87DRN132MC4 | 35.19 | 7.5KW | 42.0rpm | 1710N.m | 223kg | 17900N | 1.50 |
| FAF87DRN132MC4 | 29.20 | 7.5KW | 50.0rpm | 1420N.m | 223kg | 17600N | 1.75 |
| FAF87DRN132MC4 | 28.78 | 7.5KW | 51.0rpm | 1400N.m | 223kg | 17500N | 1.75 |
| FAF87DRN132MC4 | 26.50 | 7.5KW | 55.0rpm | 1290N.m | 223kg | 17300N | 2.30 |
| FAF87DRN132MC4 | 23.68 | 7.5KW | 62.0rpm | 1150N.m | 223kg | 17100N | 2.60 |
| FAF87DRN132MC4 | 21.32 | 7.5KW | 69.0rpm | 1030N.m | 223kg | 16800N | 2.90 |
| FAF87DRN132MC4 | 19.31 | 7.5KW | 76.0rpm | 940N.m | 223kg | 16500N | 3.20 |
| FAF87DRN132MC4 | 17.12 | 7.5KW | 86.0rpm | 830N.m | 223kg | 16100N | 3.60 |
| FAF87DRN132MC4 | 15.48 | 7.5KW | 95.0rpm | 750N.m | 223kg | 15800N | 4.00 |
FAF87DRN132L4減速器電動機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

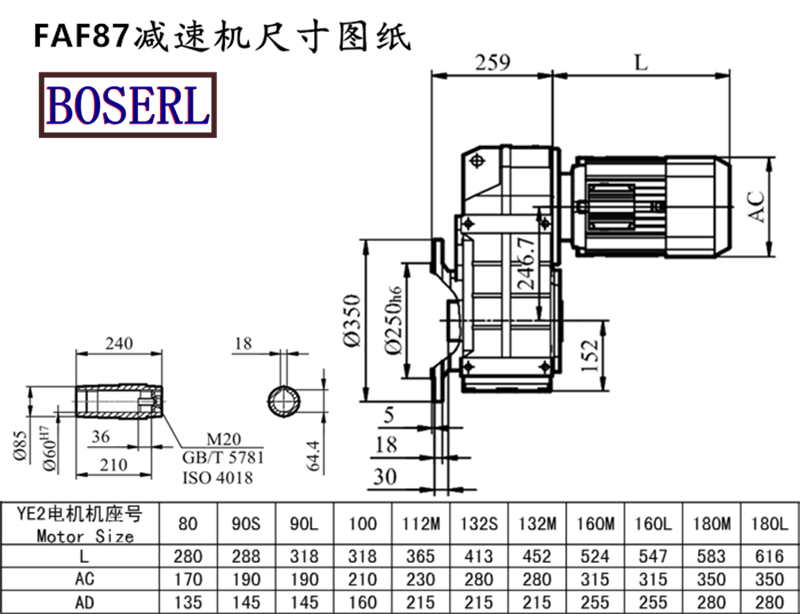

FAF87DRN132L4減速器電動機安裝尺寸圖紙
FAF87DRN132L4減速器電動機生產廠家，看廠請提前三天預約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 化工減速機電機 FAF87DRN132L4 FAF87DRN132MC4
