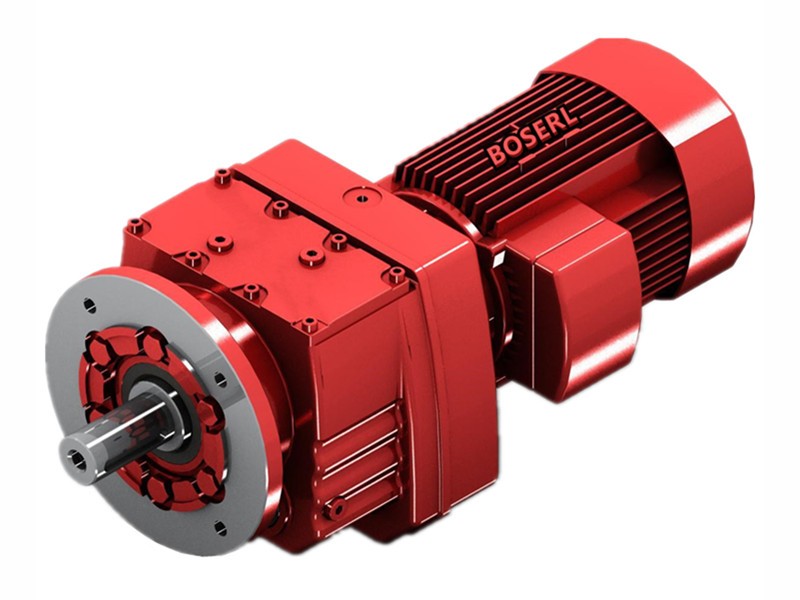

R107DRN132MC4詳細信息
R107DRN132MC4
訂購熱線：13360667204
關鍵詞：4KW馬達配減速機_R107DRN132MC4_R107DRN132ML4
R107DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107DRN132MC4 | 127.68 | 5.5kw | 11rpm | 4640N.m | 200kg | 27500N | 0.95 |
| R107DRN132MC4 | 115.63 | 5.5kw | 12rpm | 4200N.m | 200kg | 30000N | 1 |
| R107DRN132MC4 | 102.53 | 5.5kw | 14rpm | 3720N.m | 200kg | 32200N | 1.15 |
| R107DRN132MC4 | 92.7 | 5.5kw | 16rpm | 3360N.m | 200kg | 33700N | 1.3 |
| R107DRN132MC4 | 78.57 | 5.5kw | 18rpm | 2850N.m | 200kg | 33400N | 1.5 |
| R107DRN132MC4 | 72.88 | 5.5kw | 20rpm | 2640N.m | 200kg | 32800N | 1.6 |
| R107DRN132MC4 | 65.6 | 5.5kw | 22rpm | 2380N.m | 200kg | 32000N | 1.8 |
| R107DRN132MC4 | 59.41 | 5.5kw | 24rpm | 2150N.m | 200kg | 31200N | 2 |
| R107DRN132MC4 | 52.68 | 5.5kw | 27rpm | 1910N.m | 200kg | 30200N | 2.2 |
| R107DRN132MC4 | 47.63 | 5.5kw | 30rpm | 1730N.m | 200kg | 29400N | 2.5 |
| R107DRN132MC4 | 40.37 | 5.5kw | 36rpm | 1460N.m | 200kg | 28200N | 2.9 |
R107DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107DRN132ML4 | 127.68 | 5.5kw | 11rpm | 4640N.m | 200kg | 27500N | 0.95 |
| R107DRN132ML4 | 115.63 | 5.5kw | 12rpm | 4200N.m | 200kg | 30000N | 1 |
| R107DRN132ML4 | 102.53 | 5.5kw | 14rpm | 3720N.m | 200kg | 32200N | 1.15 |
| R107DRN132ML4 | 92.7 | 5.5kw | 16rpm | 3360N.m | 200kg | 33700N | 1.3 |
| R107DRN132ML4 | 78.57 | 5.5kw | 18rpm | 2850N.m | 200kg | 33400N | 1.5 |
| R107DRN132ML4 | 72.88 | 5.5kw | 20rpm | 2640N.m | 200kg | 32800N | 1.6 |
| R107DRN132ML4 | 65.6 | 5.5kw | 22rpm | 2380N.m | 200kg | 32000N | 1.8 |
| R107DRN132ML4 | 59.41 | 5.5kw | 24rpm | 2150N.m | 200kg | 31200N | 2 |
| R107DRN132ML4 | 52.68 | 5.5kw | 27rpm | 1910N.m | 200kg | 30200N | 2.2 |
| R107DRN132ML4 | 47.63 | 5.5kw | 30rpm | 1730N.m | 200kg | 29400N | 2.5 |
| R107DRN132ML4 | 40.37 | 5.5kw | 36rpm | 1460N.m | 200kg | 28200N | 2.9 |

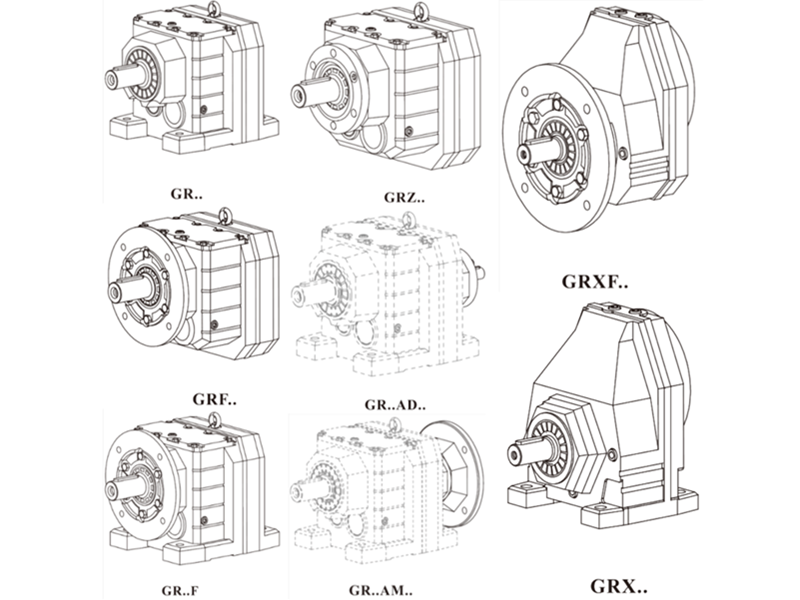

R107DRN132MC4減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

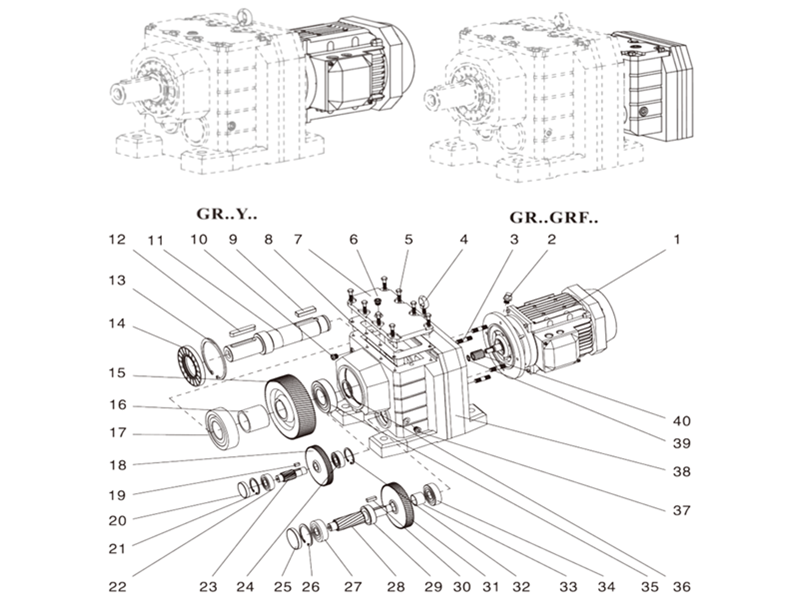

R107DRN132MC4減速機馬達安裝尺寸圖紙
R107DRN132MC4減速機生產工廠展示：看廠請?zhí)崆叭祛A約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 4KW馬達配減速機 R107DRN132MC4 R107DRN132ML4
