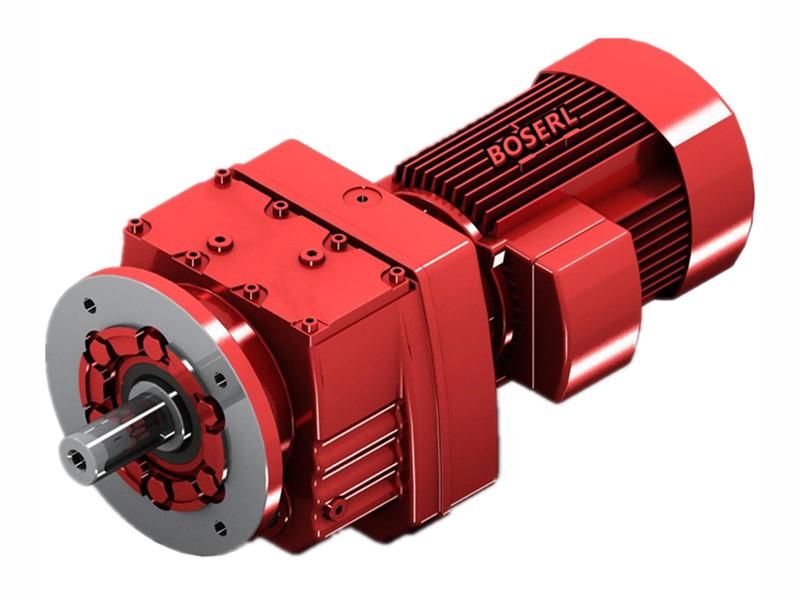

R77DRN132MC4詳細信息
R77DRN132MC4
訂購熱線：13360667204
關鍵詞：7.5KW電動機減速機_R77DRN132MC4_R77DRN132ML4
R77DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77DRN132MC4 | 18.80 | 5.5KW | 77rpm | 675N.m | 96kg | 9300N | 1.15 |
| R77DRN132MC4 | 17.82 | 5.5KW | 82rpm | 640N.m | 96kg | 9370N | 1.20 |
| R77DRN132MC4 | 15.60 | 5.5KW | 93rpm | 560N.m | 96kg | 9120N | 1.30 |
| R77DRN132MC4 | 14.05 | 5.5KW | 104rpm | 505N.m | 96kg | 8920N | 1.40 |
| R77DRN132MC4 | 12.33 | 5.5KW | 118rpm | 440N.m | 96kg | 8650N | 1.55 |
| R77DRN132MC4 | 10.88 | 5.5KW | 134rpm | 390N.m | 96kg | 8400N | 1.70 |
| R77DRN132MC4 | 9.64 | 5.5KW | 151rpm | 345N.m | 96kg | 8160N | 1.80 |
| R77DRN132MC4 | 8.59 | 5.5KW | 169rpm | 310N.m | 96kg | 8040N | 2.00 |
| R77DRN132MC4 | 7.74 | 5.5KW | 188rpm | 275N.m | 96kg | 7820N | 2.20 |
| R77DRN132MC4 | 6.79 | 5.5KW | 214rpm | 245N.m | 96kg | 7540N | 2.40 |
| R77DRN132MC4 | 5.99 | 5.5KW | 243rpm | 215N.m | 96kg | 7280N | 2.50 |
| R77DRN132MC4 | 5.31 | 5.5KW | 274rpm | 192N.m | 96kg | 7040N | 2.70 |
R77DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77DRN132ML4 | 18.80 | 7.5KW | 78rpm | 910N.m | 109kg | 5530N | 0.85 |
| R77DRN132ML4 | 17.82 | 7.5KW | 82rpm | 860N.m | 109kg | 5920N | 0.90 |
| R77DRN132ML4 | 15.60 | 7.5KW | 94rpm | 755N.m | 109kg | 6770N | 0.95 |
| R77DRN132ML4 | 14.05 | 7.5KW | 105rpm | 680N.m | 109kg | 7310N | 1.05 |
| R77DRN132ML4 | 12.33 | 7.5KW | 119rpm | 600N.m | 109kg | 7850N | 1.15 |
| R77DRN132ML4 | 10.88 | 7.5KW | 135rpm | 525N.m | 109kg | 7960N | 1.25 |
| R77DRN132ML4 | 9.64 | 7.5KW | 152rpm | 465N.m | 109kg | 7770N | 1.35 |
| R77DRN132ML4 | 8.59 | 7.5KW | 171rpm | 415N.m | 109kg | 7690N | 1.50 |
| R77DRN132ML4 | 7.74 | 7.5KW | 190rpm | 375N.m | 109kg | 7540N | 1.60 |
| R77DRN132ML4 | 6.79 | 7.5KW | 216rpm | 330N.m | 109kg | 7290N | 1.75 |
| R77DRN132ML4 | 5.99 | 7.5KW | 245rpm | 290N.m | 109kg | 7060N | 1.85 |
| R77DRN132ML4 | 5.31 | 7.5KW | 277rpm | 255N.m | 109kg | 6840N | 1.95 |

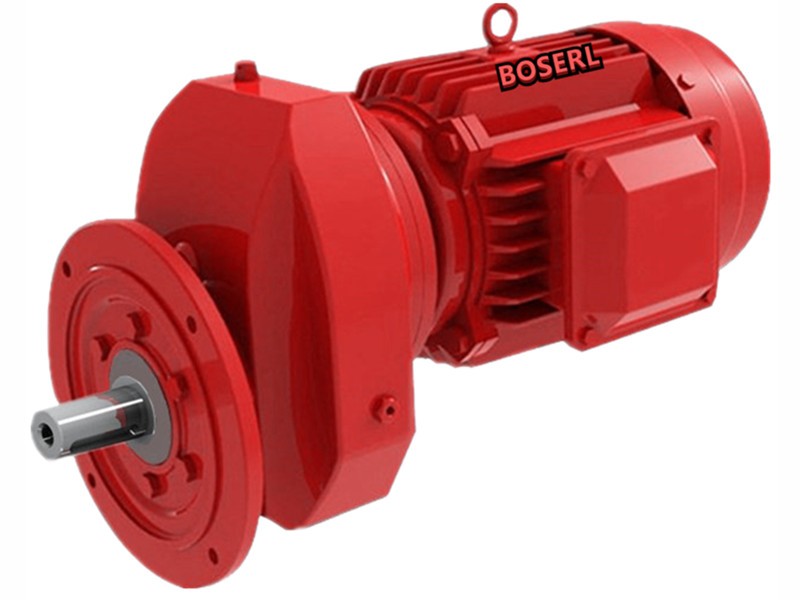

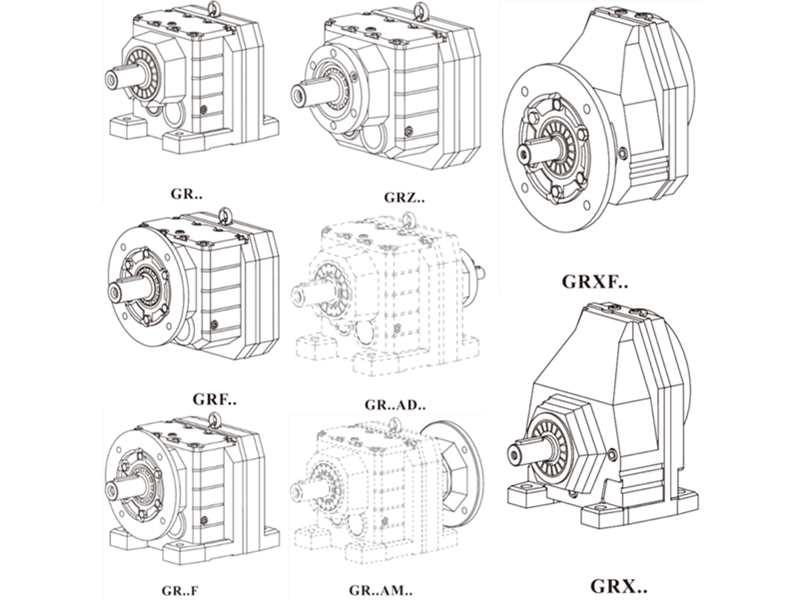

R77DRN132MC4減速齒輪箱類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

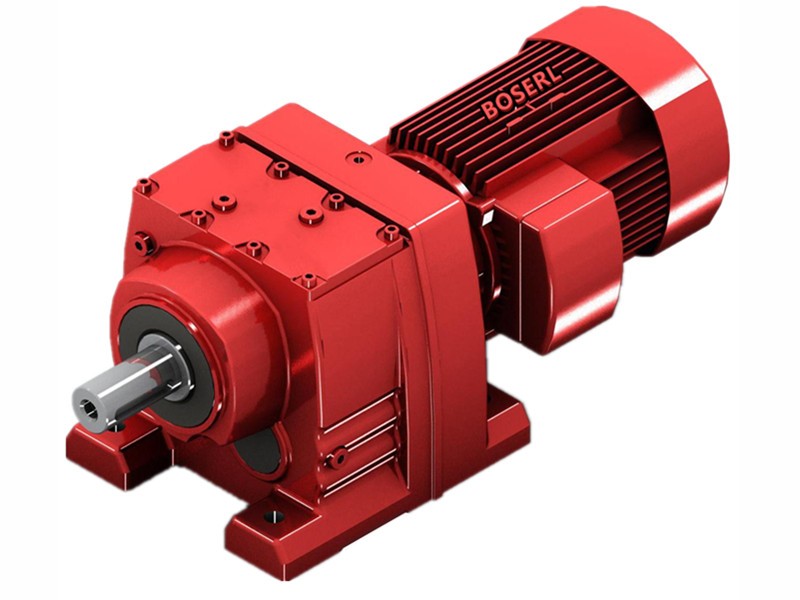

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

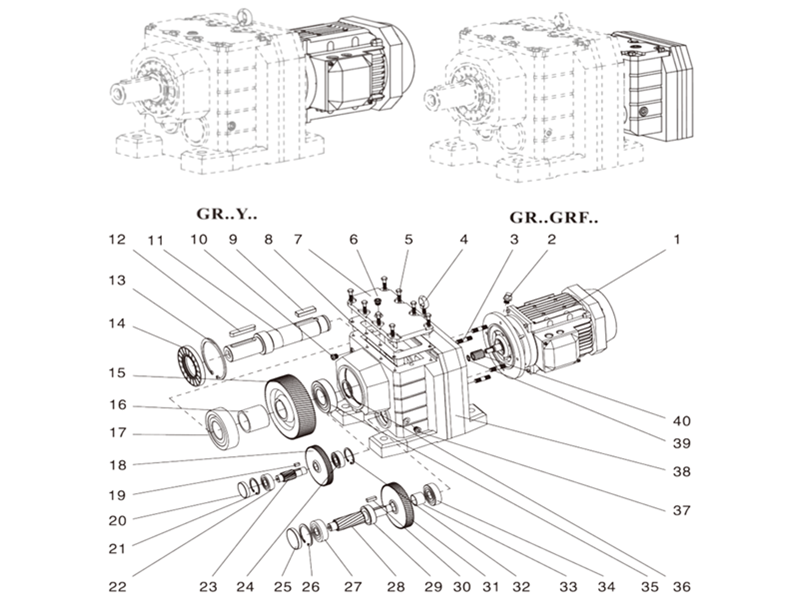

R77DRN132MC4減速齒輪箱安裝尺寸圖紙
R77DRN132MC4減速齒輪箱生產工廠展示：看廠請提前三天預約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 7.5KW電動機減速機 R77DRN132MC4 R77DRN132ML4
