R97DRN180LC4詳細信息
R97DRN180LC4
訂購熱線：13360667204
關鍵詞：18.5千瓦馬達減速機_R97DRN180LC4_R97DRE180LC4
R97DRN180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R97DRN180LC4 | 20.14 | 18.5kw | 72rpm | 2430N.m | 225kg | 14900N | 1.05 |
| R97DRN180LC4 | 18.24 | 18.5kw | 80rpm | 2200N.m | 225kg | 14700N | 1.15 |
| R97DRN180LC4 | 16.17 | 18.5kw | 90rpm | 1950N.m | 225kg | 14500N | 1.25 |
| R97DRN180LC4 | 14.62 | 18.5kw | 100rpm | 1760N.m | 225kg | 14200N | 1.3 |
| R97DRN180LC4 | 12.39 | 18.5kw | 118rpm | 1490N.m | 225kg | 13800N | 1.45 |
| R97DRN180LC4 | 10.83 | 18.5kw | 135rpm | 1310N.m | 225kg | 13500N | 1.6 |
| R97DRN180LC4 | 9.29 | 18.5kw | 157rpm | 1120N.m | 225kg | 13400N | 1.8 |
| R97DRN180LC4 | 8.39 | 18.5kw | 174rpm | 1010N.m | 225kg | 13100N | 2 |
| R97DRN180LC4 | 7.12 | 18.5kw | 205rpm | 860N.m | 225kg | 12600N | 2.3 |
| R97DRN180LC4 | 6.21 | 18.5kw | 235rpm | 750N.m | 225kg | 12100N | 2.5 |
| R97DRN180LC4 | 5.2 | 18.5kw | 281rpm | 625N.m | 225kg | 11600N | 2.8 |
| R97DRN180LC4 | 4.5 | 18.5kw | 324rpm | 540N.m | 225kg | 11100N | 3 |
R97DRE180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R97DRE180LC4 | 20.14 | 22kw | 72rpm | 2890N.m | 245kg | 14000N | 0.9 |
| R97DRE180LC4 | 18.24 | 22kw | 80rpm | 2620N.m | 245kg | 13900N | 0.95 |
| R97DRE180LC4 | 16.17 | 22kw | 90rpm | 2320N.m | 245kg | 13700N | 1.05 |
| R97DRE180LC4 | 14.62 | 22kw | 100rpm | 2100N.m | 245kg | 13600N | 1.1 |
| R97DRE180LC4 | 12.39 | 22kw | 118rpm | 1780N.m | 245kg | 13300N | 1.25 |
| R97DRE180LC4 | 10.83 | 22kw | 135rpm | 1550N.m | 245kg | 13000N | 1.35 |
| R97DRE180LC4 | 9.29 | 22kw | 157rpm | 1330N.m | 245kg | 13100N | 1.5 |
| R97DRE180LC4 | 8.39 | 22kw | 174rpm | 1200N.m | 245kg | 12800N | 1.7 |
| R97DRE180LC4 | 7.12 | 22kw | 205rpm | 1020N.m | 245kg | 12300N | 1.95 |
| R97DRE180LC4 | 6.21 | 22kw | 235rpm | 890N.m | 245kg | 11900N | 2.1 |
| R97DRE180LC4 | 5.2 | 22kw | 281rpm | 745N.m | 245kg | 11400N | 2.4 |
| R97DRE180LC4 | 4.5 | 22kw | 324rpm | 645N.m | 245kg | 10900N | 2.5 |
R97DRN180LC4減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

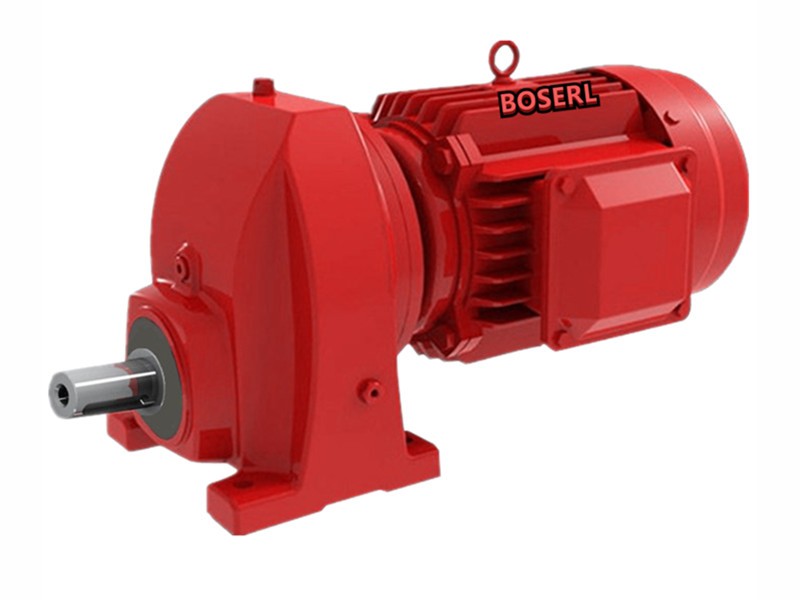

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

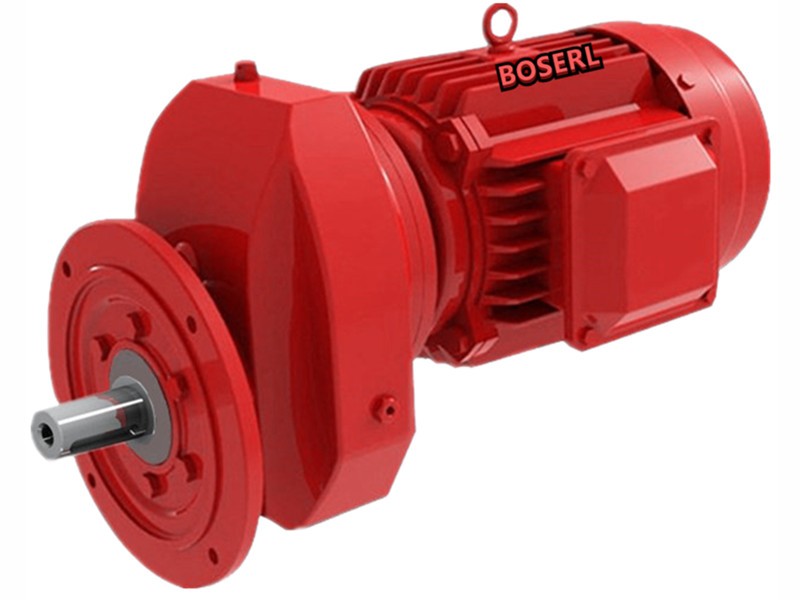

RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
R97DRN180LC4減速機馬達安裝尺寸圖紙
R97DRN180LC4減速機生產工廠展示：看廠請提前三天預約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 18.5千瓦馬達減速機 R97DRN180LC4 R97DRE180LC4
