				RF27齒輪減速機馬達詳細信息






























                                        prevnext



































      RF27齒輪減速機馬達















							訂購熱線：13360667204



























      1. 詳細信息
        2.












      關鍵詞：RF27齒輪減速機馬達_RF27Y0.25KW_RF27Y0.37KW_RF27齒輪減速機_RF27齒輪減速機生產廠家_RF27齒輪減速機廠家
      RF27Y0.25KW減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      RF27Y0.25KW84.780.25KW15.0rpm156N.m15.5kg4100N0.85
      RF27Y0.25KW74.110.25KW18.0rpm136N.m15.5kg4210N0.95
      RF27Y0.25KW69.470.25KW19.0rpm128N.m15.5kg4240N1.00
      RF27Y0.25KW61.300.25KW21.0rpm113N.m15.5kg4180N1.15
      RF27Y0.25KW55.870.25KW23.0rpm103N.m15.5kg4090N1.25
      RF27Y0.25KW48.170.25KW27.0rpm88N.m15.5kg3940N1.45
      RF27Y0.25KW44.900.25KW29.0rpm82N.m15.5kg3870N1.60
      RF27Y0.25KW39.250.25KW33.0rpm72N.m15.5kg3730N1.80
      RF27Y0.25KW36.790.25KW35.0rpm68N.m15.5kg3660N1.90
      RF27Y0.25KW32.470.25KW40.0rpm60N.m15.5kg3540N2.20
      RF27Y0.25KW28.780.25KW45.0rpm53N.m15.5kg3420N2.50
      RF27Y0.25KW24.470.25KW53.0rpm45N.m15.5kg3270N2.90
      RF27Y0.25KW28.370.25KW46.0rpm52N.m15.5kg3410N2.50
      RF27Y0.25KW26.090.25KW50.0rpm48N.m15.5kg3330N2.70
      RF27Y0.25KW22.320.25KW58.0rpm41N.m15.5kg3180N3.20
      RF27Y0.25KW19.350.25KW67.0rpm36N.m15.5kg3050N3.70
      RF27Y0.25KW18.080.25KW72.0rpm33N.m15.5kg2990N3.90
      RF27Y0.25KW15.630.25KW83.0rpm29N.m15.5kg2860N4.50
      RF27Y0.25KW13.280.25KW98.0rpm24N.m15.5kg2730N5.30
      RF27Y0.25KW11.860.25KW110rpm22N.m15.5kg2630N5.90
      RF27Y0.25KW10.130.25KW128rpm19N.m15.5kg2510N6.60
      RF27Y0.25KW9.410.25KW138rpm17N.m15.5kg2440N7.00
      RF27Y0.25KW8.160.25KW159rpm15N.m15.5kg2330N7.70
      RF27Y0.25KW7.630.25KW170rpm14N.m15.5kg2280N8.00
      RF27Y0.25KW6.590.25KW197rpm12N.m15.5kg2180N8.80
      RF27Y0.25KW5.600.25KW232rpm10N.m15.5kg2080N9.60
      RF27Y0.25KW5.000.25KW260rpm9.2N.m15.5kg2000N10.0
      RF27Y0.25KW4.270.25KW304rpm7.8N.m15.5kg1900N11.0
      RF27Y0.25KW4.000.25KW325rpm7.3N.m15.5kg1870N12.0
      RF27Y0.25KW3.370.25KW386rpm6.2N.m15.5kg1770N13.0
      RF27Y0.37KW減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      RF27Y0.37KW61.300.37KW23.0rpm157N.m16kg3870N
      		0.85
      RF27Y0.37KW55.870.37KW25.0rpm143N.m16kg3800N0.90
      RF27Y0.37KW48.170.37KW29.0rpm123N.m16kg3680N1.05
      RF27Y0.37KW44.900.37KW31.0rpm115N.m16kg3620N1.15
      RF27Y0.37KW39.250.37KW35.0rpm100N.m16kg3510N1.30
      RF27Y0.37KW36.790.37KW38.0rpm94N.m16kg3460N1.40
      RF27Y0.37KW32.470.37KW42.0rpm83N.m16kg3350N1.55
      RF27Y0.37KW28.780.37KW48.0rpm74N.m16kg3250N1.75
      RF27Y0.37KW24.470.37KW56.0rpm63N.m16kg3110N2.10
      RF27Y0.37KW28.370.37KW49.0rpm73N.m16kg3240N1.80
      RF27Y0.37KW26.090.37KW53.0rpm67N.m16kg3170N1.95
      RF27Y0.37KW22.320.37KW62.0rpm57N.m16kg3040N2.30
      RF27Y0.37KW19.350.37KW71.0rpm50N.m16kg2920N2.60
      RF27Y0.37KW18.080.37KW76.0rpm46N.m16kg2860N2.80
      RF27Y0.37KW15.630.37KW88.0rpm40N.m16kg2750N3.20
      RF27Y0.37KW13.280.37KW104rpm34N.m16kg2620N3.80
      RF27齒輪減速機馬達類型：
      RX..DR..單級底腳安裝斜齒輪減速電機
      RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

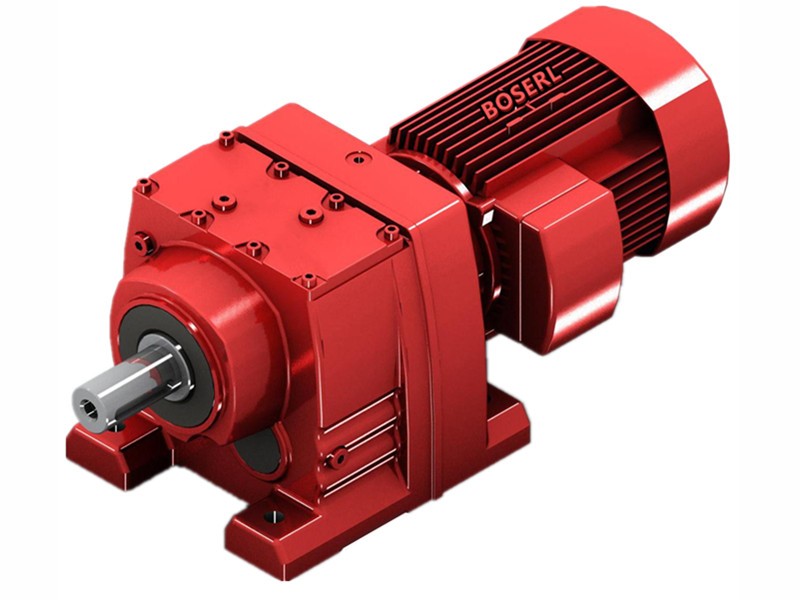

      R..DR..底腳安裝斜齒輪減速電機
      R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

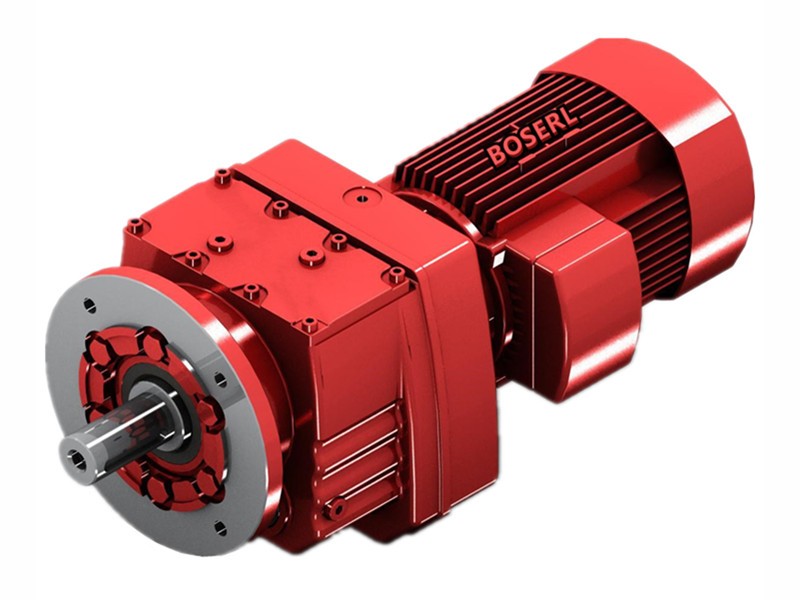

      RF..DR..B5法蘭安裝斜齒輪減速電機
      RZ..DR..B14法蘭安裝斜齒輪減速電機

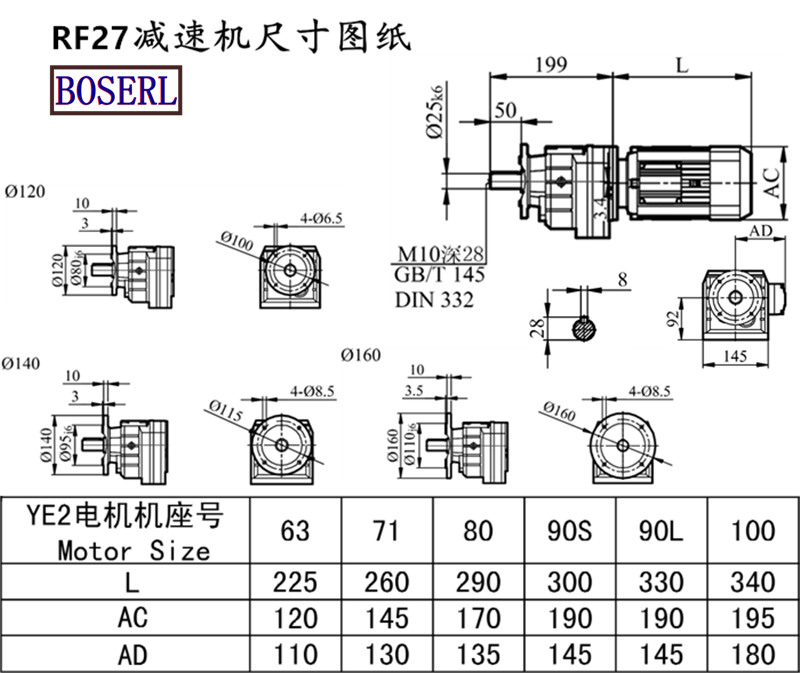

      RF27齒輪減速機馬達安裝尺寸圖紙
      RF27齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
      立式減速機應用案例展示：
      關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
      RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
      RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
      如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
