同軸斜齒輪減速機電機

















			網站首頁 > BOSERL減速機 > 同軸斜齒輪減速機廠家 > RF系列減速機廠家






















				RF27DVE71S4詳細信息






























                                        prevnext



































      RF27DVE71S4















							訂購熱線：13360667204



























      1. 詳細信息
        2.












      關鍵詞：22KW220伏減速機電機_RF27DVE71S4_RF27DRE71S4
      RF27DVE71S4減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      RF27DVE71S484.780.25KW15.0rpm156N.m15.5kg4100N0.85
      RF27DVE71S474.110.25KW18.0rpm136N.m15.5kg4210N0.95
      RF27DVE71S469.470.25KW19.0rpm128N.m15.5kg4240N1.00
      RF27DVE71S461.300.25KW21.0rpm113N.m15.5kg4180N1.15
      RF27DVE71S455.870.25KW23.0rpm103N.m15.5kg4090N1.25
      RF27DVE71S448.170.25KW27.0rpm88N.m15.5kg3940N1.45
      RF27DVE71S444.900.25KW29.0rpm82N.m15.5kg3870N1.60
      RF27DVE71S439.250.25KW33.0rpm72N.m15.5kg3730N1.80
      RF27DVE71S436.790.25KW35.0rpm68N.m15.5kg3660N1.90
      RF27DVE71S432.470.25KW40.0rpm60N.m15.5kg3540N2.20
      RF27DVE71S428.780.25KW45.0rpm53N.m15.5kg3420N2.50
      RF27DVE71S424.470.25KW53.0rpm45N.m15.5kg3270N2.90
      RF27DVE71S428.370.25KW46.0rpm52N.m15.5kg3410N2.50
      RF27DVE71S426.090.25KW50.0rpm48N.m15.5kg3330N2.70
      RF27DVE71S422.320.25KW58.0rpm41N.m15.5kg3180N3.20
      RF27DVE71S419.350.25KW67.0rpm36N.m15.5kg3050N3.70
      RF27DVE71S418.080.25KW72.0rpm33N.m15.5kg2990N3.90
      RF27DVE71S415.630.25KW83.0rpm29N.m15.5kg2860N4.50
      RF27DVE71S413.280.25KW98.0rpm24N.m15.5kg2730N5.30
      RF27DVE71S411.860.25KW110rpm22N.m15.5kg2630N5.90
      RF27DVE71S410.130.25KW128rpm19N.m15.5kg2510N6.60
      RF27DVE71S49.410.25KW138rpm17N.m15.5kg2440N7.00
      RF27DVE71S48.160.25KW159rpm15N.m15.5kg2330N7.70
      RF27DVE71S47.630.25KW170rpm14N.m15.5kg2280N8.00
      RF27DVE71S46.590.25KW197rpm12N.m15.5kg2180N8.80
      RF27DVE71S45.600.25KW232rpm10N.m15.5kg2080N9.60
      RF27DVE71S45.000.25KW260rpm9.2N.m15.5kg2000N10.0
      RF27DVE71S44.270.25KW304rpm7.8N.m15.5kg1900N11.0
      RF27DVE71S44.000.25KW325rpm7.3N.m15.5kg1870N12.0
      RF27DVE71S43.370.25KW386rpm6.2N.m15.5kg1770N13.0
      RF27DRE71S4減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      RF27DRE71S484.780.25KW15.0rpm156N.m15.5kg4100N0.85
      RF27DRE71S474.110.25KW18.0rpm136N.m15.5kg4210N0.95
      RF27DRE71S469.470.25KW19.0rpm128N.m15.5kg4240N1.00
      RF27DRE71S461.300.25KW21.0rpm113N.m15.5kg4180N1.15
      RF27DRE71S455.870.25KW23.0rpm103N.m15.5kg4090N1.25
      RF27DRE71S448.170.25KW27.0rpm88N.m15.5kg3940N1.45
      RF27DRE71S444.900.25KW29.0rpm82N.m15.5kg3870N1.60
      RF27DRE71S439.250.25KW33.0rpm72N.m15.5kg3730N1.80
      RF27DRE71S436.790.25KW35.0rpm68N.m15.5kg3660N1.90
      RF27DRE71S432.470.25KW40.0rpm60N.m15.5kg3540N2.20
      RF27DRE71S428.780.25KW45.0rpm53N.m15.5kg3420N2.50
      RF27DRE71S424.470.25KW53.0rpm45N.m15.5kg3270N2.90
      RF27DRE71S428.370.25KW46.0rpm52N.m15.5kg3410N2.50
      RF27DRE71S426.090.25KW50.0rpm48N.m15.5kg3330N2.70
      RF27DRE71S422.320.25KW58.0rpm41N.m15.5kg3180N3.20
      RF27DRE71S419.350.25KW67.0rpm36N.m15.5kg3050N3.70
      RF27DRE71S418.080.25KW72.0rpm33N.m15.5kg2990N3.90
      RF27DRE71S415.630.25KW83.0rpm29N.m15.5kg2860N4.50
      RF27DRE71S413.280.25KW98.0rpm24N.m15.5kg2730N5.30
      RF27DRE71S411.860.25KW110rpm22N.m15.5kg2630N5.90
      RF27DRE71S410.130.25KW128rpm19N.m15.5kg2510N6.60
      RF27DRE71S49.410.25KW138rpm17N.m15.5kg2440N7.00
      RF27DRE71S48.160.25KW159rpm15N.m15.5kg2330N7.70
      RF27DRE71S47.630.25KW170rpm14N.m15.5kg2280N8.00
      RF27DRE71S46.590.25KW197rpm12N.m15.5kg2180N8.80
      RF27DRE71S45.600.25KW232rpm10N.m15.5kg2080N9.60
      RF27DRE71S45.000.25KW260rpm9.2N.m15.5kg2000N10.0
      RF27DRE71S44.270.25KW304rpm7.8N.m15.5kg1900N11.0
      RF27DRE71S44.000.25KW325rpm7.3N.m15.5kg1870N12.0
      RF27DRE71S43.370.25KW386rpm6.2N.m15.5kg1770N13.0

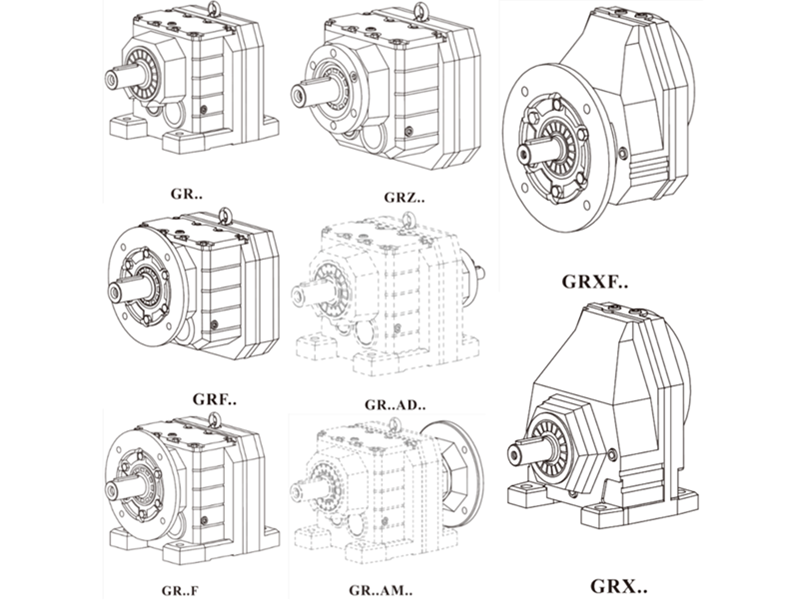

      RF27DVE71S4齒輪減速機馬達類型：
      RX..DR..單級底腳安裝斜齒輪減速電機
      RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
      R..DR..底腳安裝斜齒輪減速電機
      R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
      RF..DR..B5法蘭安裝斜齒輪減速電機
      RZ..DR..B14法蘭安裝斜齒輪減速電機

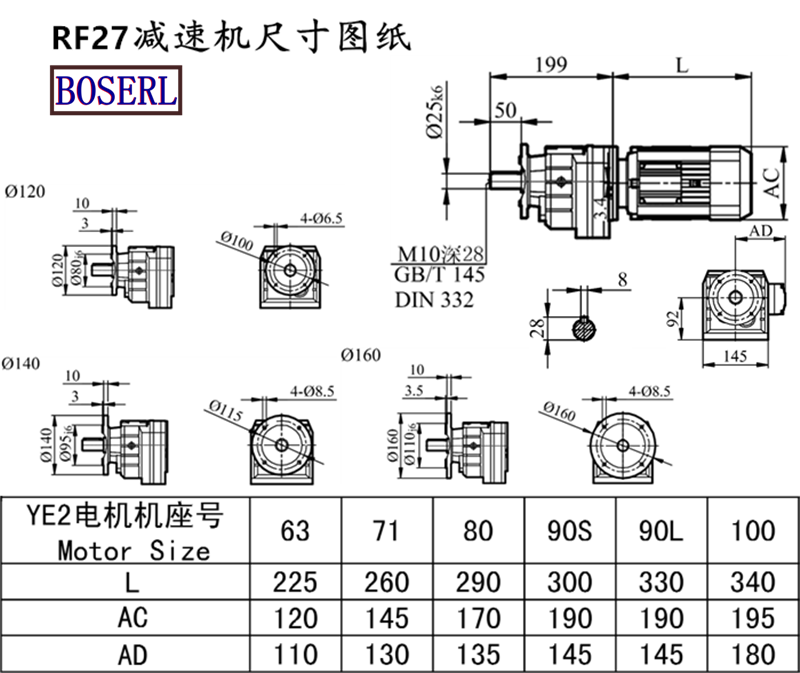

      RF27DVE71S4齒輪減速機馬達安裝尺寸圖紙
      RF27DVE71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
      立式減速機應用案例展示：
      關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
      RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
      RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
      如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求

      標簽:  22KW220伏減速機電機 RF27DVE71S4 RF27DRE71S4



























      跟此產品相關的文檔 / Related DownLoad














									產品文件名稱





									點擊下載













									RF27DVE71S4減速機樣本







										點擊下載















									RF27DVE71S4減速機三維圖紙







										點擊下載
