RX67DV71S4詳細信息
RX67DV71S4
訂購熱線：13360667204
關鍵詞：160KW單向減速機電機_RX67DV71S4_RX67DRN71S4
RX67DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RX67DV71S4 | 199.81 | 0.37KW | 6.90rpm | 510N.m | 35.5kg | 8480N | 1.15 |
| RX67DV71S4 | 184.07 | 0.37KW | 7.50rpm | 470N.m | 35.5kg | 8820N | 1.25 |
| RX67DV71S4 | 158.14 | 0.37KW | 8.70rpm | 400N.m | 35.5kg | 9300N | 1.50 |
| RX67DV71S4 | 137.67 | 0.37KW | 10.0rpm | 450N.m | 35.5kg | 9620N | 1.70 |
| RX67DV71S4 | 128.97 | 0.37KW | 11.0rpm | 330N.m | 35.5kg | 9740N | 1.80 |
| RX67DV71S4 | 113.94 | 0.37KW | 12.0rpm | 290N.m | 35.5kg | 9920N | 2.10 |
| RX67DV71S4 | 105.83 | 0.37KW | 13.0rpm | 270N.m | 35.5kg | 10000N | 2.20 |
| RX67DV71S4 | 95.91 | 0.37KW | 14.0rpm | 245N.m | 35.5kg | 10100N | 2.40 |
| RX67DV71S4 | 86.11 | 0.37KW | 16.0rpm | 220N.m | 35.5kg | 10200N | 2.70 |
| RX67DV71S4 | 74.17 | 0.37KW | 19.0rpm | 190N.m | 35.5kg | 10300N | 3.20 |
| RX67DV71S4 | 69.75 | 0.37KW | 20.0rpm | 179N.m | 35.5kg | 10300N | 3.40 |
| RX67DV71S4 | 61.26 | 0.37KW | 23.0rpm | 157N.m | 35.5kg | 10400N | 3.80 |
| RX67DV71S4 | 56.89 | 0.37KW | 24.0rpm | 146N.m | 35.5kg | 10400N | 4.10 |
RX67DRN71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RX67DRN71S4 | 158.14 | 0.55KW | 8.70rpm | 600N.m | 40kg | 7540N | 1.00 |
| RX67DRN71S4 | 137.67 | 0.55KW | 10.0rpm | 520N.m | 40kg | 8360N | 1.15 |
| RX67DRN71S4 | 128.97 | 0.55KW | 11.0rpm | 490N.m | 40kg | 8660N | 1.20 |
| RX67DRN71S4 | 113.94 | 0.55KW | 12.0rpm | 430N.m | 40kg | 9110N | 1.40 |
| RX67DRN71S4 | 105.83 | 0.55KW | 13.0rpm | 400N.m | 40kg | 9320N | 1.50 |
| RX67DRN71S4 | 95.91 | 0.55KW | 14.0rpm | 365N.m | 40kg | 9550N | 1.65 |
| RX67DRN71S4 | 86.11 | 0.55KW | 16.0rpm | 325N.m | 40kg | 9750N | 1.85 |
| RX67DRN71S4 | 74.17 | 0.55KW | 19.0rpm | 280N.m | 40kg | 9960N | 2.10 |
| RX67DRN71S4 | 69.75 | 0.55KW | 20.0rpm | 265N.m | 40kg | 10000N | 2.30 |
| RX67DRN71S4 | 61.26 | 0.55KW | 23.0rpm | 230N.m | 40kg | 10200N | 2.60 |
| RX67DRN71S4 | 56.89 | 0.55KW | 24.0rpm | 215N.m | 40kg | 10200N | 2.80 |
RX67DV71S4電動機減速器類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

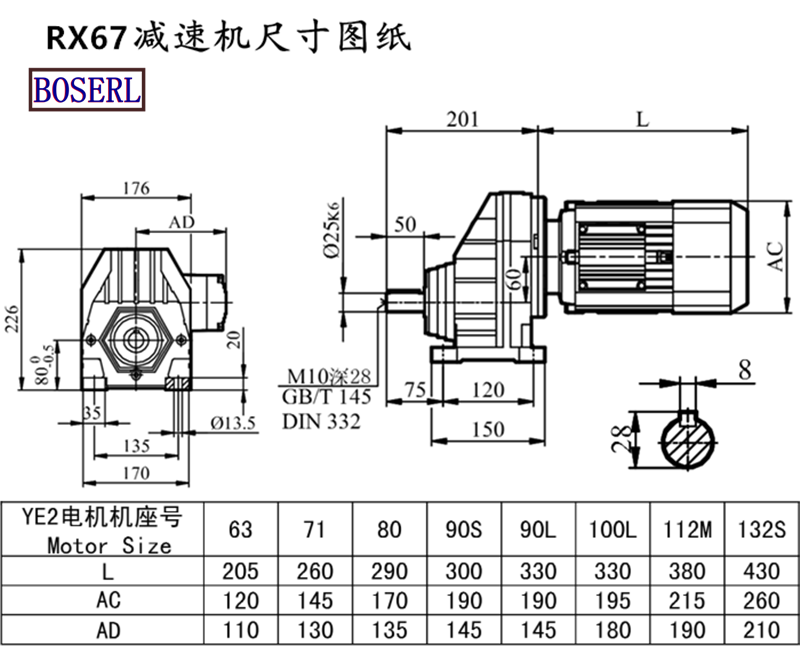

RX67DV71S4電動機減速器安裝尺寸圖紙
RX67DV71S4電動機減速器生產工廠展示：看廠請提前三天預約
電機減速機一體機應用案例展示：
關鍵詞:電機減速機一體機一套_RX系列減速機與電機_減速器電機一體式_電機減速機一體機生產廠家_電機減速機一體機廠家_RXF系列減速機生產廠家_電機減速機一體式
RX系列減速機型號：RX57減速機,RX67減速機,RX77減速機,RX87減速機,RX97減速機,RX107齒輪減速機
RX系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 160KW單向減速機電機 RX67DV71S4 RX67DRN71S4
