斜齒輪蝸輪蝸桿減速機電機

















			網站首頁 > BOSERL減速機 > 齒輪蝸輪蝸桿減速機廠家 > SA系列減速機廠家






















				SA37/TDV71S4詳細信息






























                                        prevnext

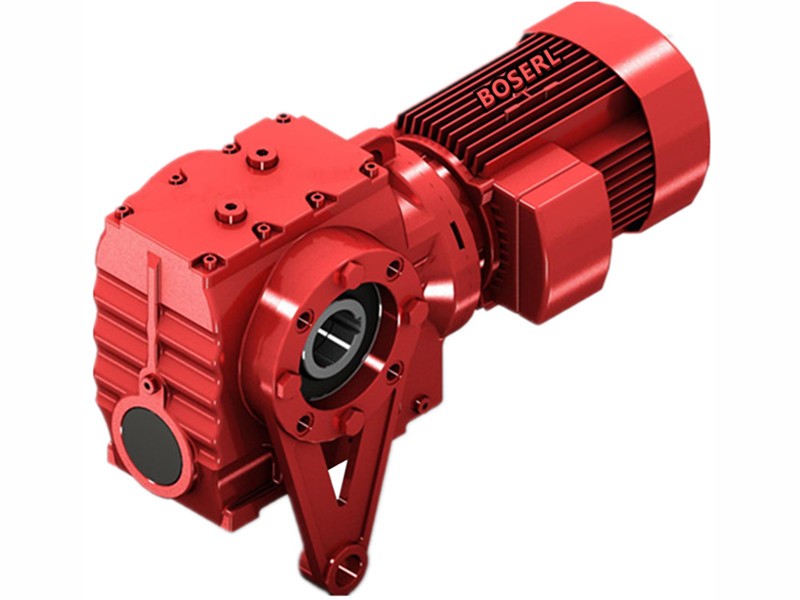

      SA37/TDV71S4















							訂購熱線：13360667204



























      1. 詳細信息
        2.












      關鍵詞：能夠攪拌167方配多大減速機電機_SA37/TDV71S4_SA37/TDM71S4
      SA37/TDV71S4減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      SA37/TDV71S498.800.25KW13.0rpm108N.m17kg3000N
      		0.80
      SA37/TDV71S486.360.25KW15.0rpm96N.m17kg3000N0.90
      SA37/TDV71S480.96
      		0.25KW16.0rpm91N.m17kg3000N0.95
      SA37/TDV71S471.440.25KW18.0rpm81N.m17kg3000N
      		1.05
      SA37/TDV71S463.330.25KW21.0rpm73N.m17kg3000N1.10
      SA37/TDV71S455.930.25KW23.0rpm78N.m17kg3000N1.05
      SA37/TDV71S451.300.25KW25.0rpm72N.m17kg3000N
      		1.15
      SA37/TDV71S443.680.25KW30.0rpm62N.m17kg3000N1.30
      SA37/TDV71S437.660.25KW35.0rpm54N.m17kg3000N1.45
      SA37/TDV71S435.100.25KW37.0rpm51N.m17kg3000N
      		1.55
      SA37/TDV71S430.680.25KW42.0rpm45N.m17kg3000N1.70
      SA37/TDV71S428.760.25KW45.0rpm42N.m17kg3000N1.80
      SA37/TDV71S425.380.25KW51.0rpm37N.m17kg3000N
      		2.00
      SA37/TDV71S422.500.25KW58.0rpm33N.m17kg3000N2.20
      SA37/TDV71S419.890.25KW65.0rpm32N.m17kg2870N1.65
      SA37/TDV71S418.240.25KW71.0rpm29N.m17kg2820N1.80
      SA37/TDV71S415.530.25KW84.0rpm25N.m17kg2710N2.00
      SA37/TDV71S413.390.25KW97.0rpm22N.m17kg2620N2.30
      SA37/TDV71S412.480.25KW104rpm20N.m17kg2570N2.40
      SA37/TDV71S410.910.25KW119rpm18N.m17kg2480N2.70
      SA37/TDV71S410.230.25KW127rpm17N.m17kg2440N2.80
      SA37/TDV71S49.020.25KW144rpm15N.m17kg2360N3.10
      SA37/TDV71S48.000.25KW162rpm13N.m17kg2280N3.40
      SA37/TDV71S46.800.25KW191rpm11N.m17kg2180N3.80
      SA37/TDM71S4減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      SA37/TDM71S498.800.25KW13.0rpm108N.m17kg3000N
      		0.80
      SA37/TDM71S486.360.25KW15.0rpm96N.m17kg3000N0.90
      SA37/TDM71S480.96
      		0.25KW16.0rpm91N.m17kg3000N0.95
      SA37/TDM71S471.440.25KW18.0rpm81N.m17kg3000N
      		1.05
      SA37/TDM71S463.330.25KW21.0rpm73N.m17kg3000N1.10
      SA37/TDM71S455.930.25KW23.0rpm78N.m17kg3000N1.05
      SA37/TDM71S451.300.25KW25.0rpm72N.m17kg3000N
      		1.15
      SA37/TDM71S443.680.25KW30.0rpm62N.m17kg3000N1.30
      SA37/TDM71S437.660.25KW35.0rpm54N.m17kg3000N1.45
      SA37/TDM71S435.100.25KW37.0rpm51N.m17kg3000N
      		1.55
      SA37/TDM71S430.680.25KW42.0rpm45N.m17kg3000N1.70
      SA37/TDM71S428.760.25KW45.0rpm42N.m17kg3000N1.80
      SA37/TDM71S425.380.25KW51.0rpm37N.m17kg3000N
      		2.00
      SA37/TDM71S422.500.25KW58.0rpm33N.m17kg3000N2.20
      SA37/TDM71S419.890.25KW65.0rpm32N.m17kg2870N1.65
      SA37/TDM71S418.240.25KW71.0rpm29N.m17kg2820N1.80
      SA37/TDM71S415.530.25KW84.0rpm25N.m17kg2710N2.00
      SA37/TDM71S413.390.25KW97.0rpm22N.m17kg2620N2.30
      SA37/TDM71S412.480.25KW104rpm20N.m17kg2570N2.40
      SA37/TDM71S410.910.25KW119rpm18N.m17kg2480N2.70
      SA37/TDM71S410.230.25KW127rpm17N.m17kg2440N2.80
      SA37/TDM71S49.020.25KW144rpm15N.m17kg2360N3.10
      SA37/TDM71S48.000.25KW162rpm13N.m17kg2280N3.40
      SA37/TDM71S46.800.25KW191rpm11N.m17kg2180N3.80
      SA37/TDV71S4齒輪減速機馬達類型：
      S..DR..底腳安裝斜齒輪自鎖減速機
      SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
      SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
      SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
      SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
      SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
      SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
      SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
      SA37/TDV71S4齒輪減速機馬達安裝尺寸圖紙
      SA37/TDV71S4齒輪減速機馬達生產工廠展示：看廠請提前三天預約
      二級減速機應用案例展示：
      關鍵詞:SA系列減速機_二級減速器與電機_雙極減速機電機一套_二級減速機_二極減速機_雙級減速機_SA系列減速機生產廠家
      SA系列減速機型號：SA37減速機,SA47減速機,SA57減速機,SA67減速機,SA77減速機,SA87減速機,SA97減速機
      SA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間

      如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


      標簽:   能夠攪拌167方配多大減速機電機 SA37/TDV71S4 SA37/TDM71S4



























      跟此產品相關的文檔 / Related DownLoad














									產品文件名稱





									點擊下載













									SA37/TDV71S4減速機樣本







										點擊下載















									SA37/TDV71S4減速機三維圖紙







										點擊下載
