SAF57R17DM71S4詳細信息
SAF57R17DM71S4
關鍵詞：90KW電機能配多大立式齒輪減速機_SAF57R17DM71S4_SAF57R17DRS63S4
SAF57R17DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF57R17DM71S4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SAF57R17DM71S4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SAF57R17DM71S4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SAF57R17DM71S4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SAF57R17DM71S4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SAF57R17DM71S4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SAF57R17DM71S4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
SAF57R17DRS63S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF57R17DRS63S4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SAF57R17DRS63S4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SAF57R17DRS63S4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SAF57R17DRS63S4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SAF57R17DRS63S4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SAF57R17DRS63S4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SAF57R17DRS63S4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SAF57R17DRS63S4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |

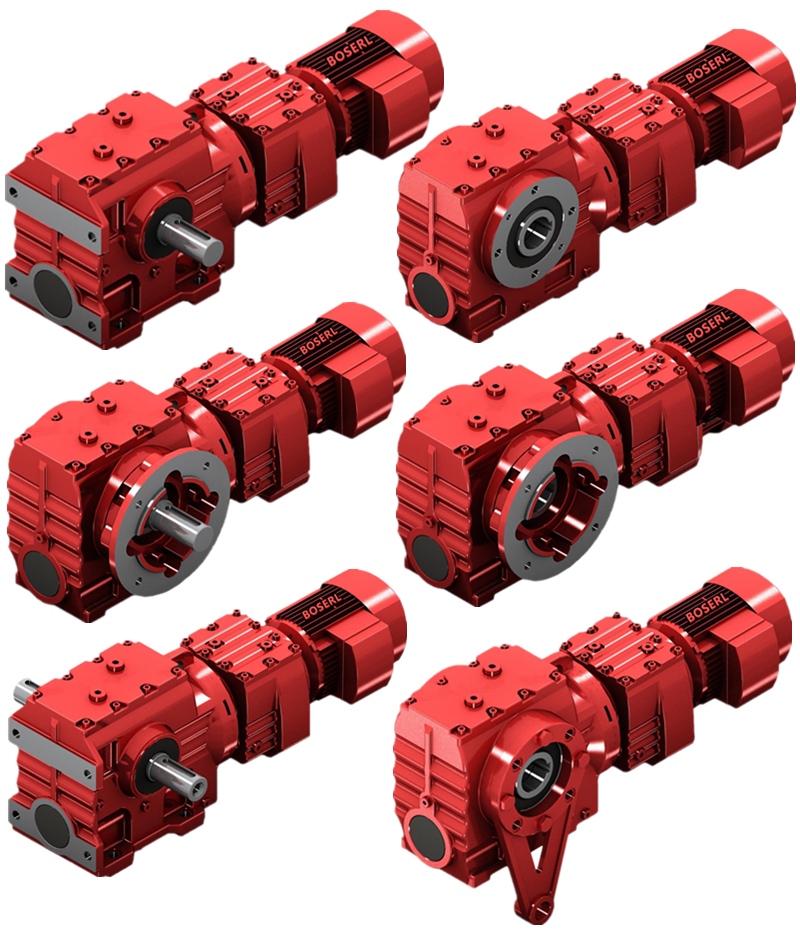

SAF57R17DM71S4電機減速器類型：
S57R17DM71S4底腳安裝-斜齒輪自鎖減速機
SA57R17DM71S4空心軸安裝-斜齒輪蝸輪蝸桿減速機

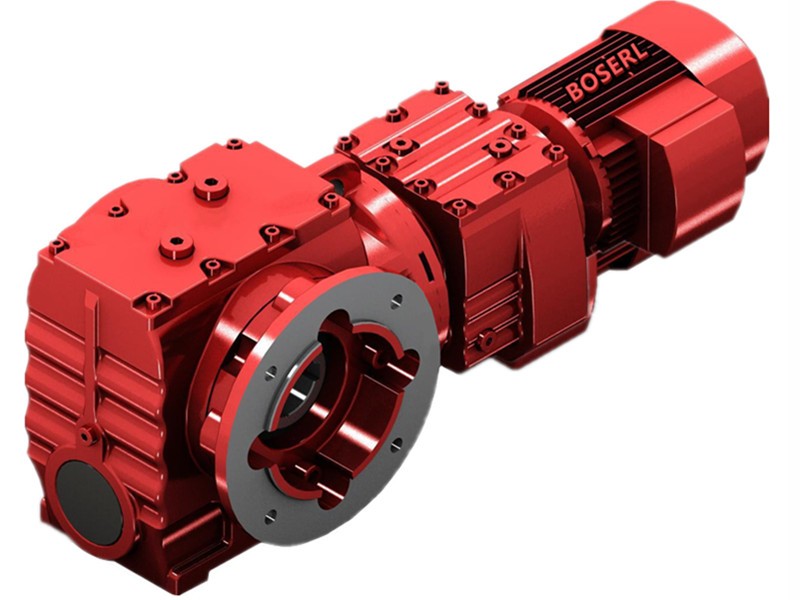

SAF57R17DM71S4是B5法蘭安裝款式-斜齒輪蝸輪蝸桿減速機
SAZ57R17DM71S4是B14法蘭空心軸安裝-斜齒輪蝸輪蝸桿減速機
SF57R17DM71S4是B5法蘭實心軸安裝-斜齒輪蝸輪蝸桿減速機
SH57R17DM71S4是空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHF57R17DM71S4是B5法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHZ57R17DM71S4是B14法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA57/TR17DM71S4扭力臂空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH57/TR17DM71S4是扭力臂空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA57BR17DM71S4底腳空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH57BR17DM71S4底腳空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
ST57R17DM71S4實心軸輸出扭力臂安裝-斜齒輪蝸輪蝸桿減速機

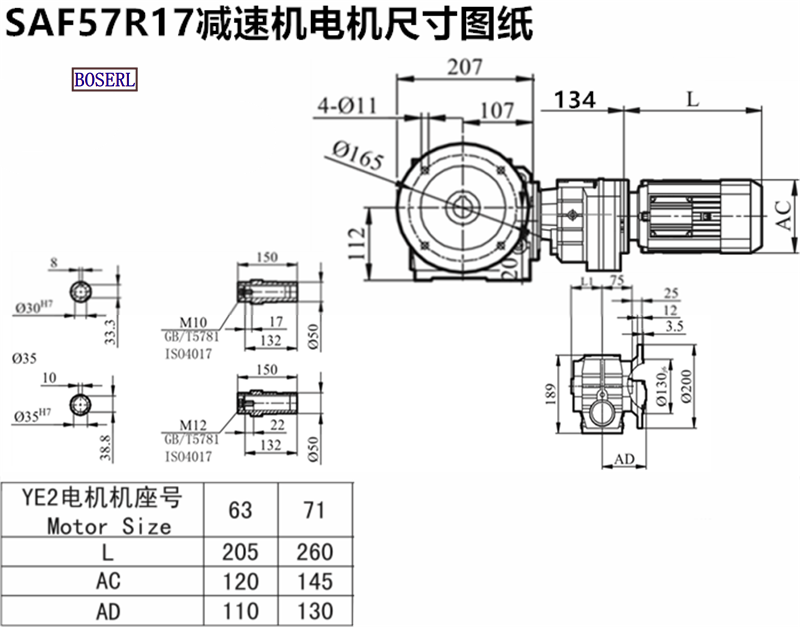

SAF57R17DM71S4電機減速器安裝尺寸圖紙
SAF57R17DM71S4電機減速器生產工廠展示：看廠請?zhí)崆叭祛A(yù)約法蘭式減速機
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 90KW電機能配多大立式齒輪減速機 SAF57R17DM71S4 SAF57R17DRS63S4
